3000 rpm 50 Hz – cos ϕ 0,8 230V – 400/230V 3600 rpm 60 Hz – cos ϕ 0,8 voltage on request
OPEN P SERIES
STANDARD EQUIPMENT
• Protection frame
• Low oil level protection
• Exhaust gas silencer
• Air filter
• Fuel tank
• Output sockets with thermal protection or circuit breaker
• 12V Battery on electric started models
OPEN P SERIES
| 3000-3600 MODEL | 50 Hz kVA max | 60 Hz kVA max | 60 Hz kVA cont | Starting | Brand | Engine | Cylinder | cm3 | Hp (max) 3600 | Cons. 75%(h/l) | Standard panel | tank | L | W | H | Kg | LWA | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MODEL | kVA max | kVA cont | kVA max | kVA cont | Starting | Brand |
| Cylinder | cm3 | Hp (max) 3600 | Cons. 75%(h/l) | Standard panel | Automatic panel |
|
|
|
| |||||||||||||||||||||
50 Hz | 60 Hz | Engine Technical Data | Tank l | L | W | H | Kg | LWA (•) | ||||||||||||||||||||||||||||||
SINGLE-PHASE | ||||||||||||||||||||||||||||||||||||||

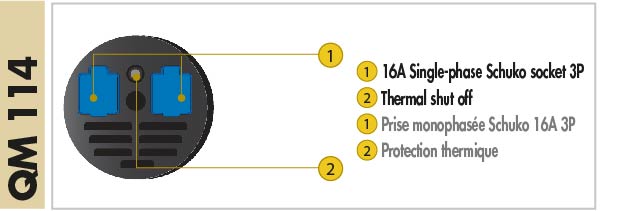

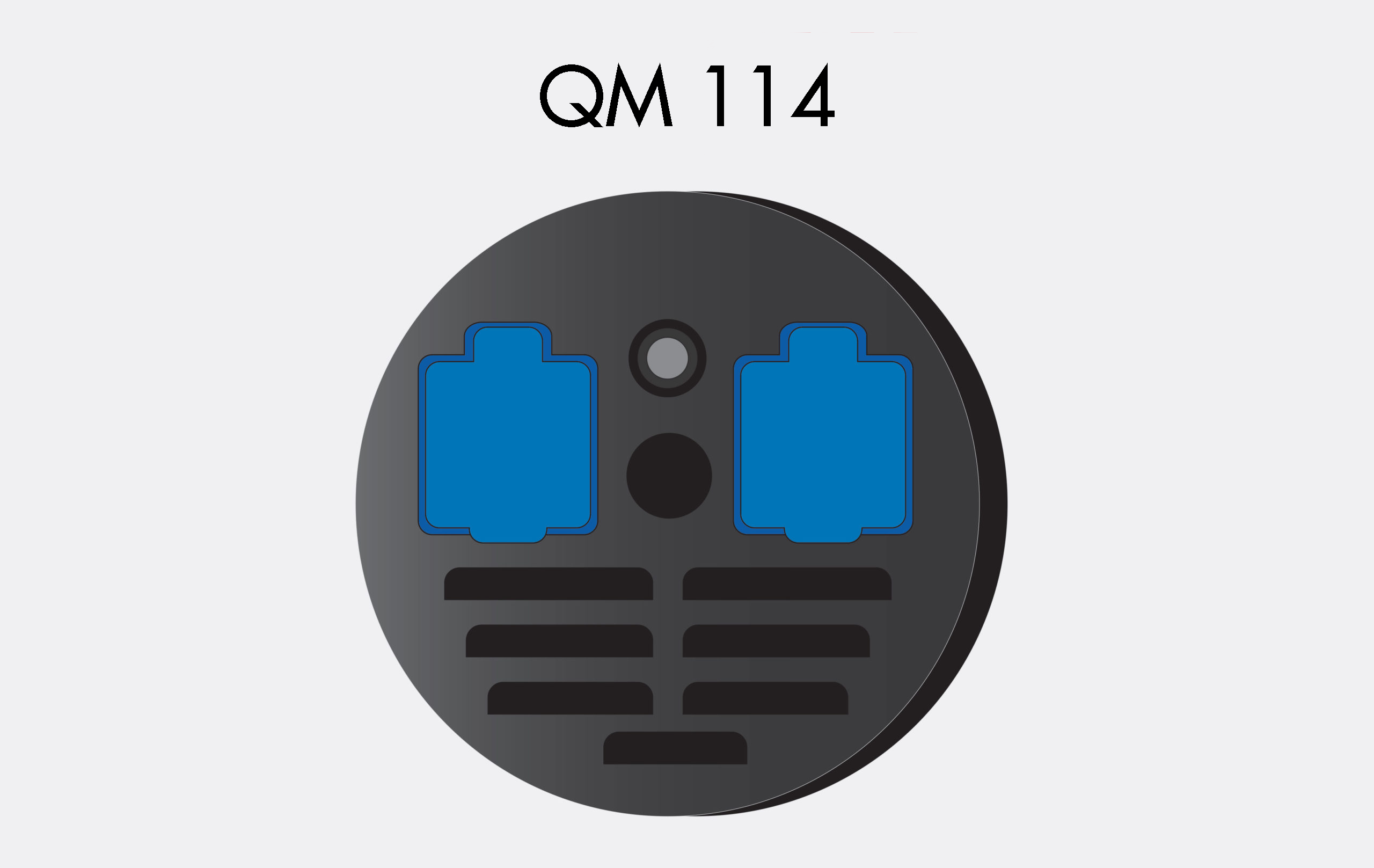

| PNP3000 | 2,8 | 2,5 | 3,1 | 2,8 | M | Honda | GX160 | 1 | 163 | 5,5 | 0,9 | QM114 | -- | 3,6 | 59 | 39 | 38 | 36 | 96 | |||||||||||||||||||
| PNP3500 | 3.4 | 3.1 | 4 | 3.5 | M | Honda | GX200 | 1 | 196 | 6.5 | 1 | QM114 | - - | 3.6 | 59 | 39 | 38 | 40 | 96 | |||||||||||||||||||

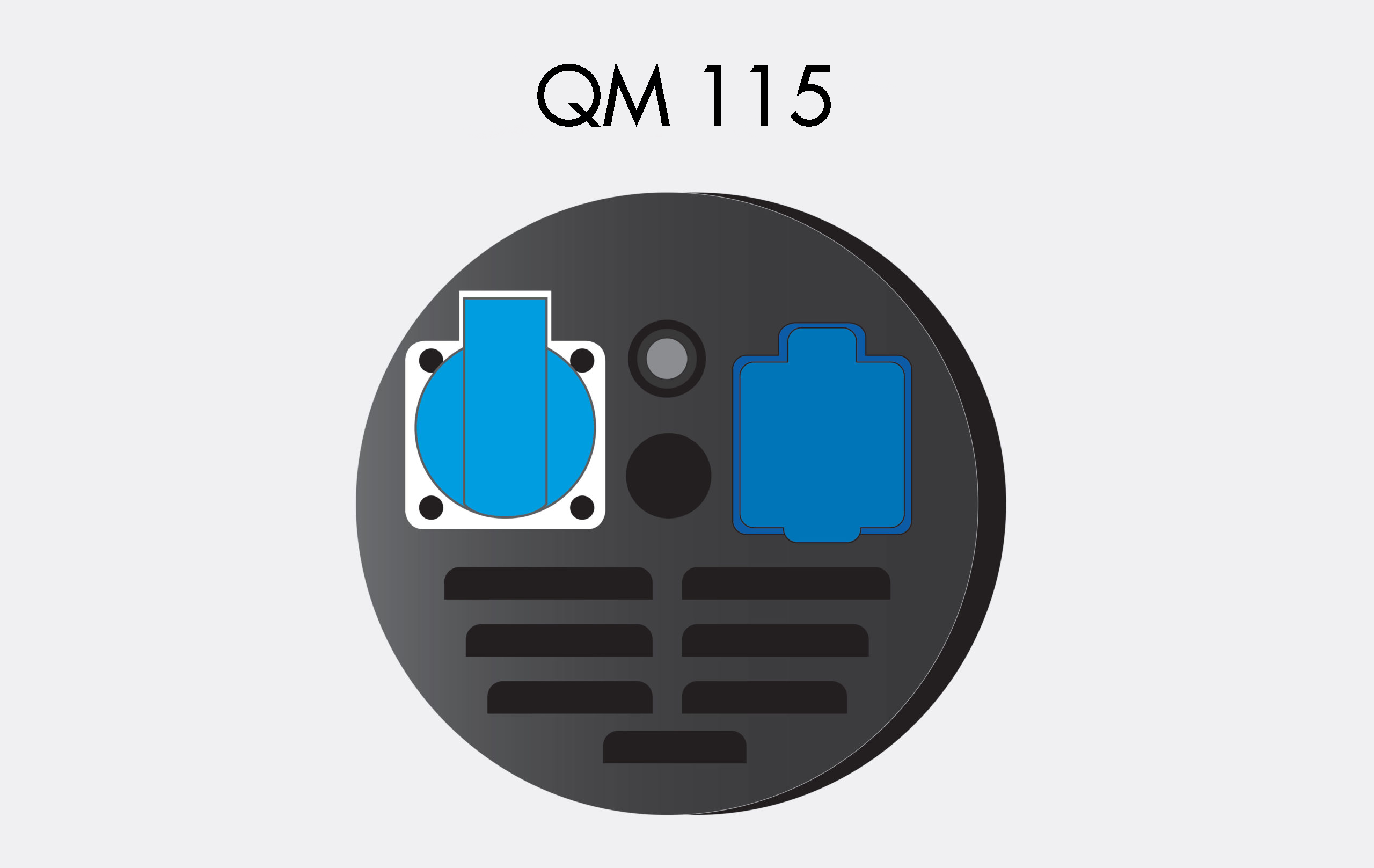

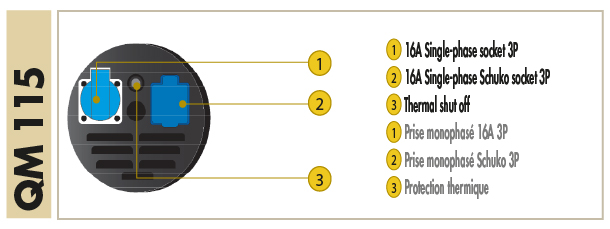

| PNP5000 | 4.5 | 4.1 | 5.4 | 5 | M | Honda | GX270 | 1 | 270 | 9 | 1.5 | QM115 | - - | 6 | 78 | 52 | 56 | 62 | 95 | |||||||||||||||||||
| PNP5000E | 4.5 | 4.1 | 5.4 | 5 | E | Honda | GX270 | 1 | 270 | 9 | 1.5 | QM115 | ACP 0411 | 6 | 78 | 52 | 56 | 69 | 95 | |||||||||||||||||||

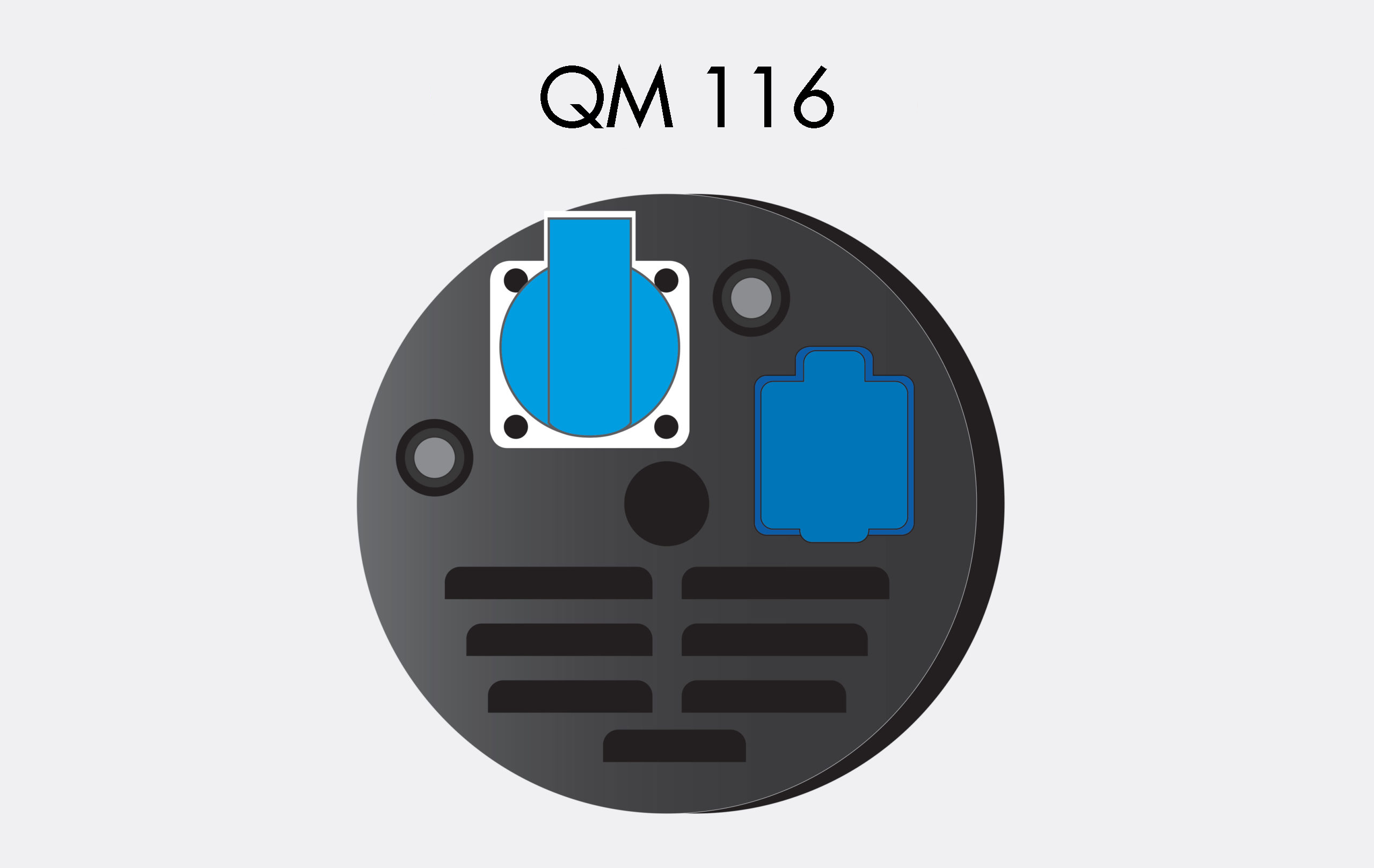

| PNP8000 | 7.2 | 6.5 | 8 | 7.2 | M | Honda | GX390 | 1 | 389 | 13 | 1.9 | QM116 | - - | 6.5 | 78 | 52 | 56 | 73 | 96 | |||||||||||||||||||
| PNP8000E | 7.2 | 6.5 | 8 | 7.2 | E | Honda | GX390 | 1 | 389 | 13 | 1.9 | QM116 | ACP 0411 | 6.5 | 78 | 52 | 56 | 80 | 96 | |||||||||||||||||||
THREE-PHASE | ||||||||||||||||||||||||||||||||||||||

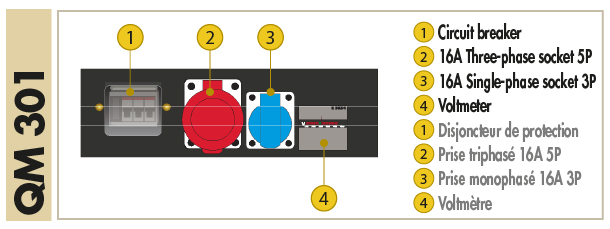

| PNP6500T | 5.4 | 4.9 | 6.5 | 5.6 | M | Honda | GX270 | 1 | 270 | 9 | 1.5 | QM301 | - - | 6 | 78 | 52 | 56 | 72 | 95 | |||||||||||||||||||
| PNP6500TE | 5.4 | 4.9 | 6.5 | 5.6 | E | Honda | GX270 | 1 | 270 | 9 | 1.5 | QM301 | ACP 0411 | 6 | 78 | 52 | 56 | 79 | 95 | |||||||||||||||||||
| PNP8000T | 7.5 | 6.8 | 8.3 | 7.5 | M | Honda | GX390 | 1 | 389 | 13 | 1.9 | QM301 | - - | 6.5 | 78 | 52 | 56 | 78 | 96 | |||||||||||||||||||
| PNP8000TE | 7.5 | 6.8 | 8.3 | 7.5 | E | Honda | GX390 | 1 | 389 | 13 | 1.9 | QM301 | ACP 0411 | 6.5 | 78 | 52 | 56 | 85 | 96 | |||||||||||||||||||
Legend: (•) = Tested value; noise level compliant with European regulation 2000/14/CE * Noise level not compliant with European regulation 2000/14/CE

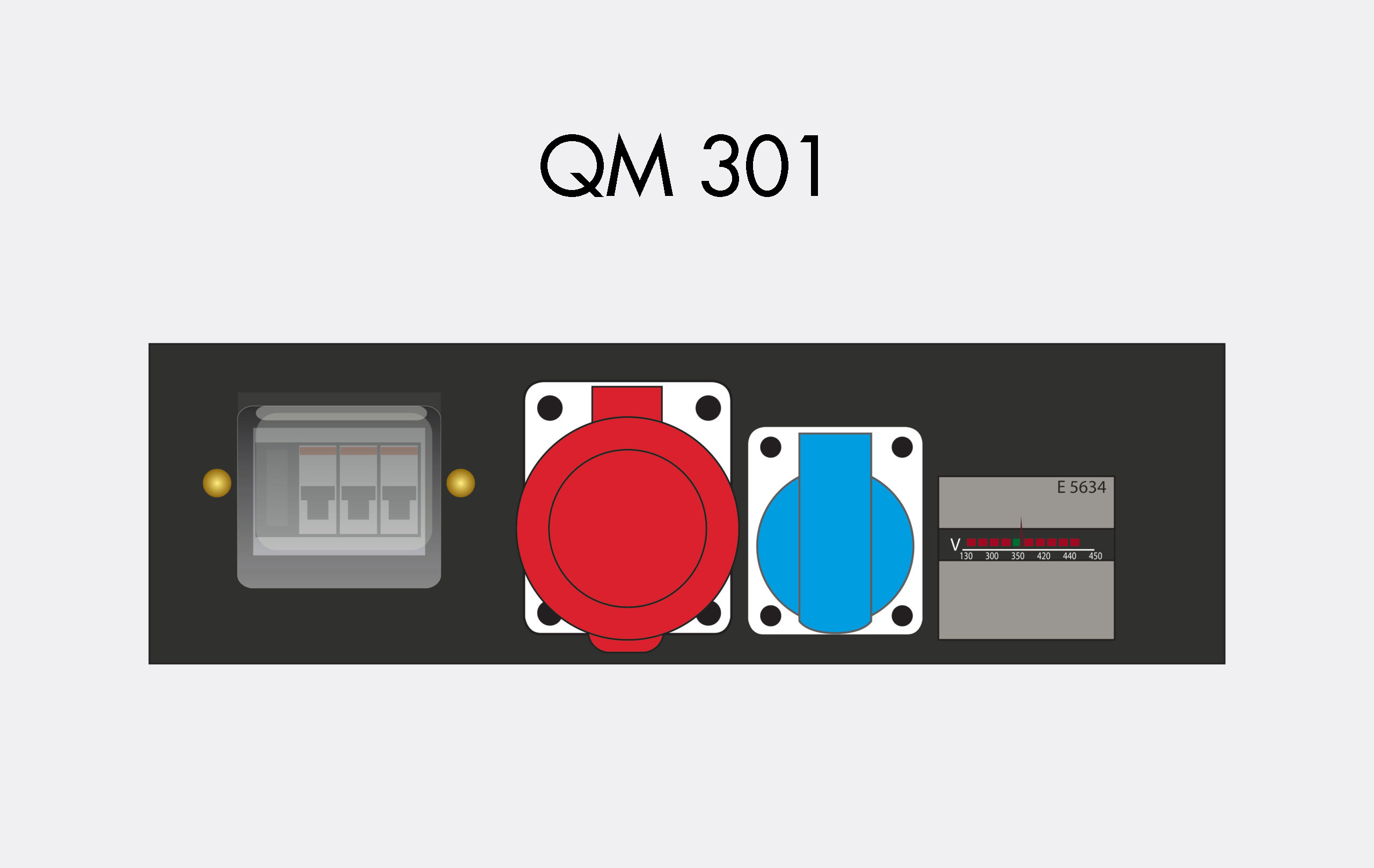

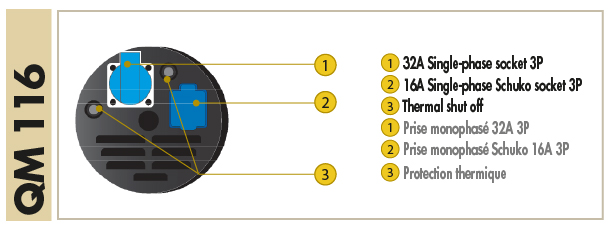

> CONTROL PANEL
