3000 rpm 50 Hz – cos ϕ 0,8 230V – 400/230V 3600 rpm 60 Hz – cos ϕ 0,8 voltage on request

OPEN D SERIES

STANDARD EQUIPMENT

• Protection frame
• Low oil level protection
• Exhaust gas silencer
• Air filter
• Fuel tank
• Output sockets with thermal protection or circuit breaker
• 12V Battery on electric started models

OPEN P SERIES

3000-3600 MODEL	50 Hz kVA max		60 Hz kVA max	60 Hz kVA cont	Starting	Brand	Engine	Cylinder	cm3	Hp (max) 3600	Cons. 75%(h/l)	Standard panel		tank	L	W	H	Kg
MODEL	kVA max	kVA cont	kVA max	kVA cont	Starting	Brand		Cylinder	cm3	Hp (max) 3600	Cons. 75%(h/l)	Standard panel	Automatic panel
	50 Hz			60 Hz			Engine Technical Data												Tank l	L	W	H	Kg
SINGLE-PHASE
PND45	4,4	4	4,8	4,4	M	Yanmar	L70	1	296	6,7	0,9	QM115	- -	3,5	78	52	56	72
PND45E	4.4	4	4.8	4.4	E	Yanmar	L70	1	296	6.7	0.9	QM103	ACP 0411	3.5	78	52	56	72
PND50	4.6	4.2	5.1	4.6	M	Kohler	15LD350	1	349	7.5	1.2	QM115		4.3	78	52	56	75
PND50E	4.6	4.2	5.1	4.6	E	Kohler	15LD350	1	349	7.5	1.2	QM103	ACP 0411	4.3	78	52	56	82
PND70	6.3	5.5	7.2	6.5	M	Yanmar	L100	1	406	10	1.4	QM116	- -	5.5	78	52	56	96
PND70E	6.3	5.5	7.2	6.5	E	Yanmar	L100	1	406	10	1.4	QM103	ACP 0411	5.5	78	52	56	103
PND75	7	6.4	7.5	6.8	M	Kohler	15LD440	1	442	11	1.6	QM116	- -	5	78	52	56	94
PND75E	7	6.4	7.5	6.8	E	Kohler	15LD440	1	442	11	1.6	QM103	ACP 0411	5	78	52	56	101
PND90E	9	8	11.5	10	E	Kohler	25LD330	2	654	15.2	2.2	QM103	ACP 0411	4	92	52	66	130
PND110E	11	10	13	11.5	E	Kohler	25LD425	2	851	17.7	2.3	QM103	ACP 0411	4	92	52	66	140
PND130E	13.3	12	16	15	E	Kohler	12LD477	2	954	19	3.3	QM103	ACP 0411	7	92	52	66	190
THREE-PHASE
PND45T	4.4	4	4.8	4.4	M	Yanmar	L 70AE	1	296	6.7	0.9	QM301	- -	3.5	78	52	56	72
PND45TE	4.4	4	4.8	4.4	E	Yanmar	L70AE	1	296	6.7	0.9	QM302	ACP 0411	3.5	78	52	56	79
PND50T	4.6	4.2	5.1	4.6	M	Kohler	15LD350	1	349	7.5	1.2	QM301	- -	4.3	78	52	56	75
PND50TE	4.6	4.2	5.1	4.6	E	Kohler	15LD350	1	349	7.5	1.2	QM302	ACP 0411	4.3	78	52	56	82
PND70T	6.3	5.5	7.2		M	Yanmar	L100AE-D	1	406	10	1.4	QM301	- -	5.5	78	52	56	101
PND70TE	6.3	5.5	7.2	6.5	E	Yanmar	L100AE-D	1	406	10	1.4	QM302	ACP 0411	5.5	78	52	56	101
PND75T	7.3	6.6	7.5	6.8	M	Kohler	15LD440	1	442	11	1.6	QM301	- -	5	78	52	56	99
PND75TE	7.3	6.6	7.5	6.8	E	Kohler	15LD440	1	442	11	1.6	QM302	ACP 0411	5	78	52	56	106
PND90TE	9	8	11.5	10	E	Kohler	25LD330	2	654	15.2	2.2	QM302	ACP 0411	4	92	52	66	135
PND110TE	11	10	13	11.5	E	Kohler	25LD425	2	851	17.7	2.3	QM302	ACP 0411	4	92	52	66	140
PND130TE	13.3	12	16	15	E	Kohler	12LD477	2	954	19	3.3	QM302	ACP 0411	7	92	52	66	190
PND220TE	21	18.5	- -	- -	E	Kohler	9LD625/2	2	1248	28.5*	4.9	QM320	ACP 0411	52	115	70	85	270

OPEN D SERIES

STANDARD EQUIPMENT

OPEN P SERIES

Legend: * = Max rating value tested at 3000 rpm (limited to the LD 22000TE model) Noise level not compliant with European regulation 2000/14/CE

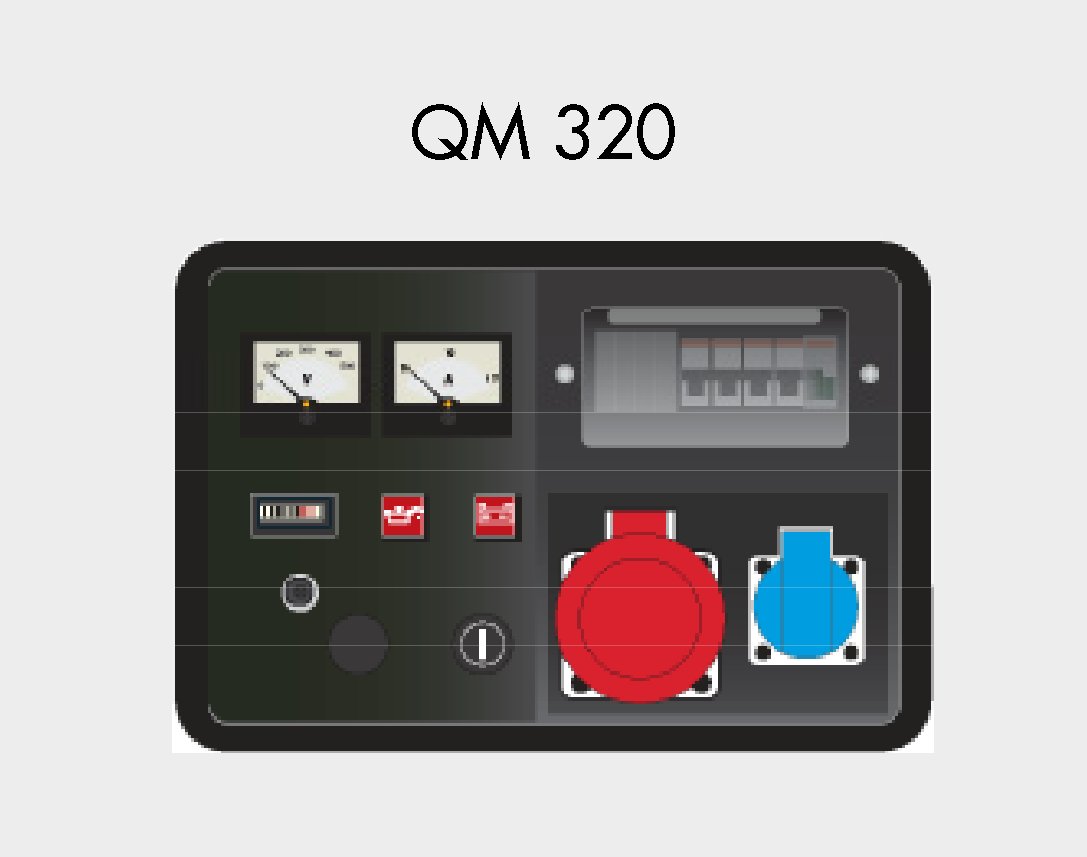

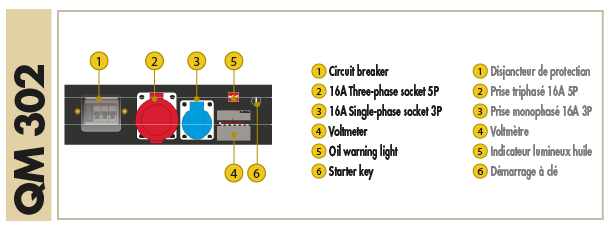

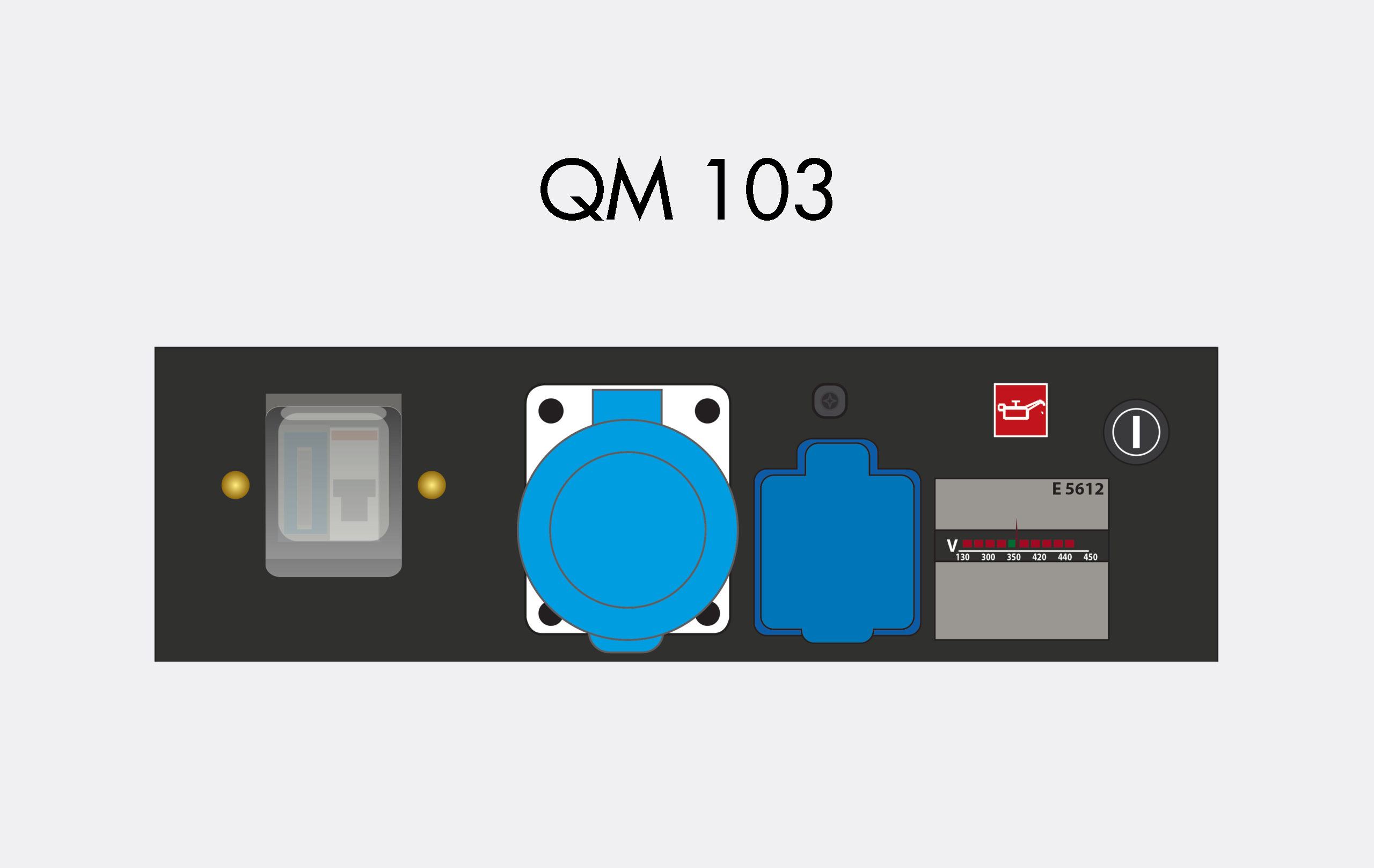

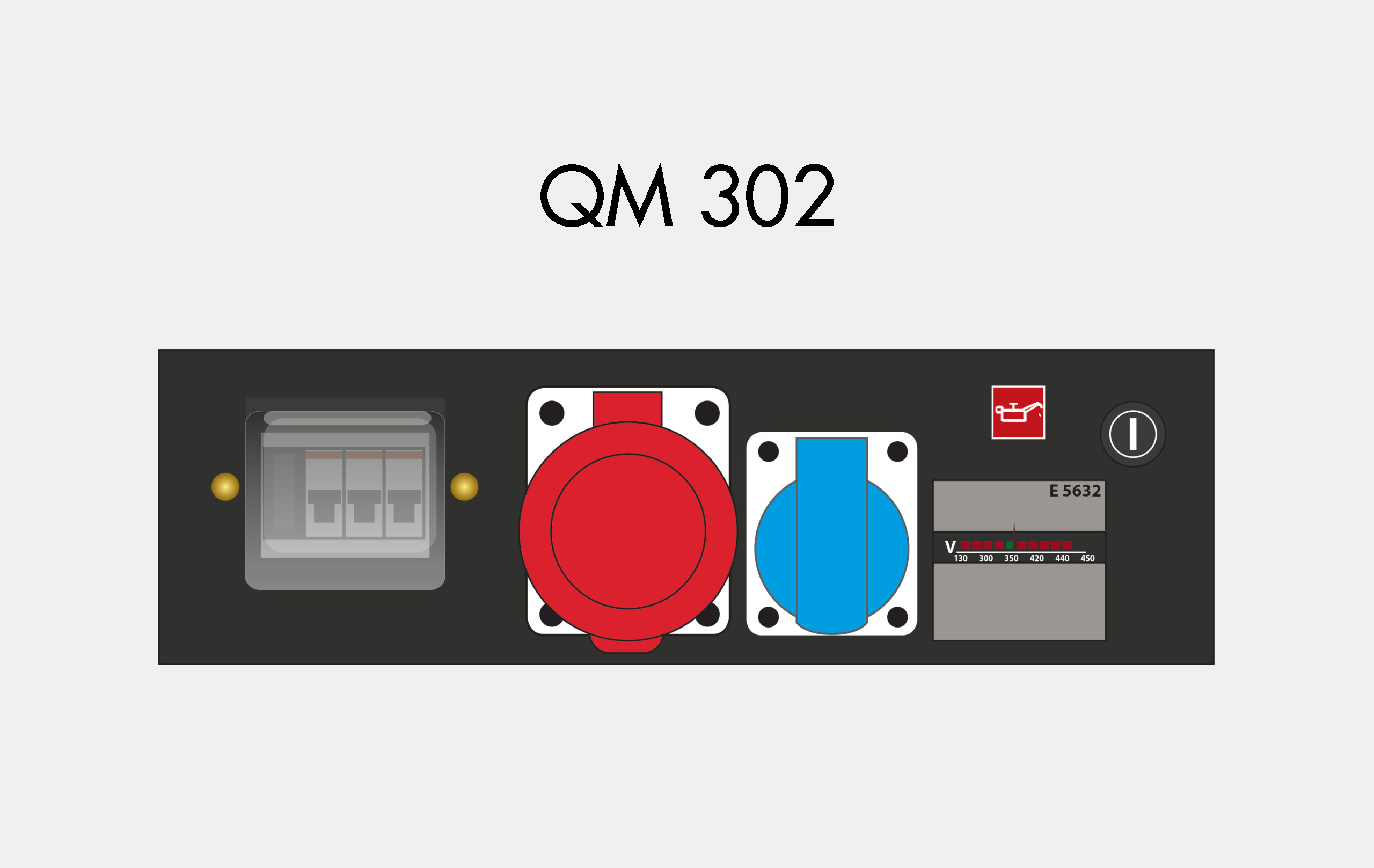

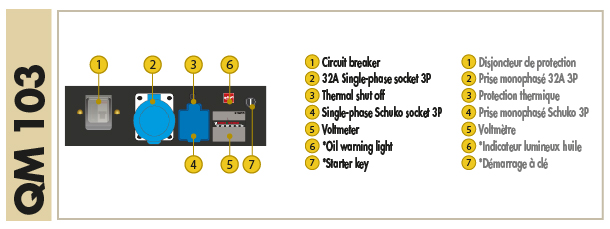

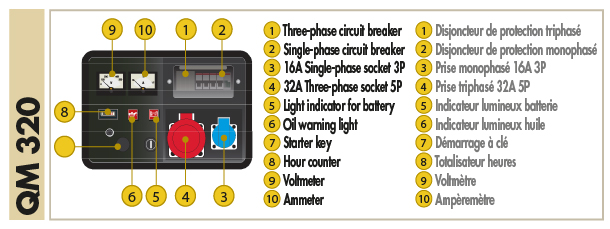

> CONTROL PANEL
