3000 rpm 50 Hz – cos ϕ 0,8 230V – 400/230V 3600 rpm 60 Hz – cos ϕ 0,8 voltage on request
BOXER P SERIES
STANDARD EQUIPMENT
• Protection frame with metal sheet top cover
• Lifting eye
• Exhaust gas silencer
• Air filter
• Fuel tank 20 lt
• Distribution panel with output sockets with circuit breaker, 0,03 A ELCB optional
• Low oil level protection
• 12V Battery on electric started models
BOXER P SERIES
| 3000-3600 MODEL | 50 Hz kVA max | 60 Hz kVA max | 60 Hz kVA cont | Starting | Brand | Engine | Cylinder | cm3 | Hp (max) 3600 | Cons. 75%(h/l) | Standard panel | tank | L | W | H | Kg | LWA | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MODEL | kVA max | kVA cont | kVA max | kVA cont | Starting | Brand |
| Cylinder | cm3 | Hp (max) 3600 | Cons. 75%(h/l) | Standard panel | Automatic panel |
|
|
|
| |||||||||||||||||||||
50 Hz | 60 Hz | Engine Technical Data | Tank l | L | W | H | Kg | LWA (•) | ||||||||||||||||||||||||||||||
SINGLE-PHASE | ||||||||||||||||||||||||||||||||||||||
| BXP5000 | 4,5 | 4,1 | 5,4 | 5 | M | Honda | GX270 | 1 | 270 | 9 | 1,5 | QM105 | - - | 20 | 75 | 56 | 62 | 77 | 95 | |||||||||||||||||||
| BXP5000E | 4.5 | 4.1 | 5.4 | 5 | E | Honda | GX270 | 1 | 270 | 9 | 1.5 | QM105 | ACP0411 | 20 | 75 | 56 | 62 | 84 | 95 | |||||||||||||||||||
| BXP8000 | 7.2 | 6.5 | 8 | 7.2 | M | Honda | GX390 | 1 | 389 | 13 | 1.9 | QM105 | - - | 20 | 75 | 56 | 62 | 88 | 96 | |||||||||||||||||||
| BXP8000E | 7.2 | 6.5 | 8 | 7.2 | E | Honda | GX390 | 1 | 389 | 13 | 1.9 | QM105 | ACP0411 | 20 | 75 | 56 | 62 | 95 | 96 | |||||||||||||||||||
| BXP13000E | 11.5 | 10.5 | - - | - - | E | Honda | GX630 | 2 | 688 | 20.8 | 4 | QM107 | ACP0411 | 20 | 99 | 55 | 67 | 123 | 98* | |||||||||||||||||||
| BXP15000E | 13 | 12 | - - | - - | E | Honda | GX690 | 2 | 688 | 22.1 | 7 | QM107 | ACP0411 | 20 | 99 | 55 | 67 | 133 | 98* | |||||||||||||||||||
THREE-PHASE | ||||||||||||||||||||||||||||||||||||||
| BXP6500T | 5.4 | 4.9 | 6.5 | 5.6 | M | Honda | GX270 | 1 | 270 | 9 | 1.5 | QM305 | - - | 20 | 75 | 56 | 62 | 77 | 95 | |||||||||||||||||||
| BXP6500TE | 5.4 | 4.9 | 6.5 | 5.6 | E | Honda | GX270 | 1 | 270 | 9 | 1.5 | QM305 | ACP0411 | 20 | 75 | 56 | 62 | 84 | 95 | |||||||||||||||||||
| BXP8000T | 7.5 | 6.8 | 8.3 | 7.5 | M | Honda | GX390 | 1 | 389 | 13 | 1.9 | QM305 | - - | 20 | 75 | 56 | 62 | 88 | 96 | |||||||||||||||||||
| BXP8000TE | 7.5 | 6.8 | 8.3 | 7.5 | E | Honda | GX390 | 1 | 389 | 13 | 1.9 | QM305 | ACP0411 | 20 | 75 | 56 | 62 | 95 | 96 | |||||||||||||||||||
| BXP13000TE | 12 | 10.9 | - - | - - | E | Honda | GX630 | 2 | 688 | 20.8 | 4 | QM307 | ACP0411 | 20 | 99 | 55 | 67 | 123 | 98* | |||||||||||||||||||
| BXP15000TE | 13 | 12 | - - | - - | E | Honda | GX690 | 2 | 688 | 22.1 | 7 | QM307 | ACP0411 | 20 | 99 | 55 | 67 | 133 | 98* | |||||||||||||||||||
Legend: * Noise level not compliant with European regulation 2000/14/CE (•) = Tested value; noise level compliant with European regulation 2000/14/CE

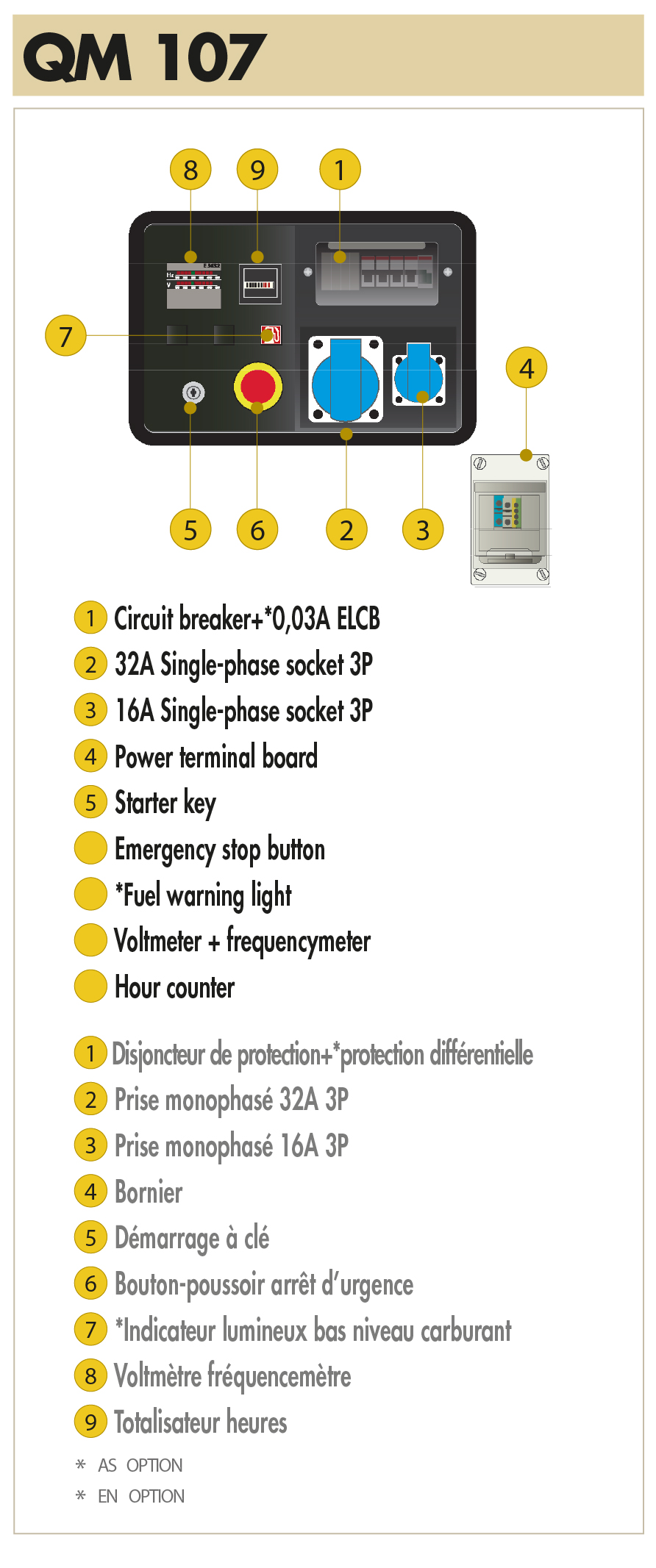

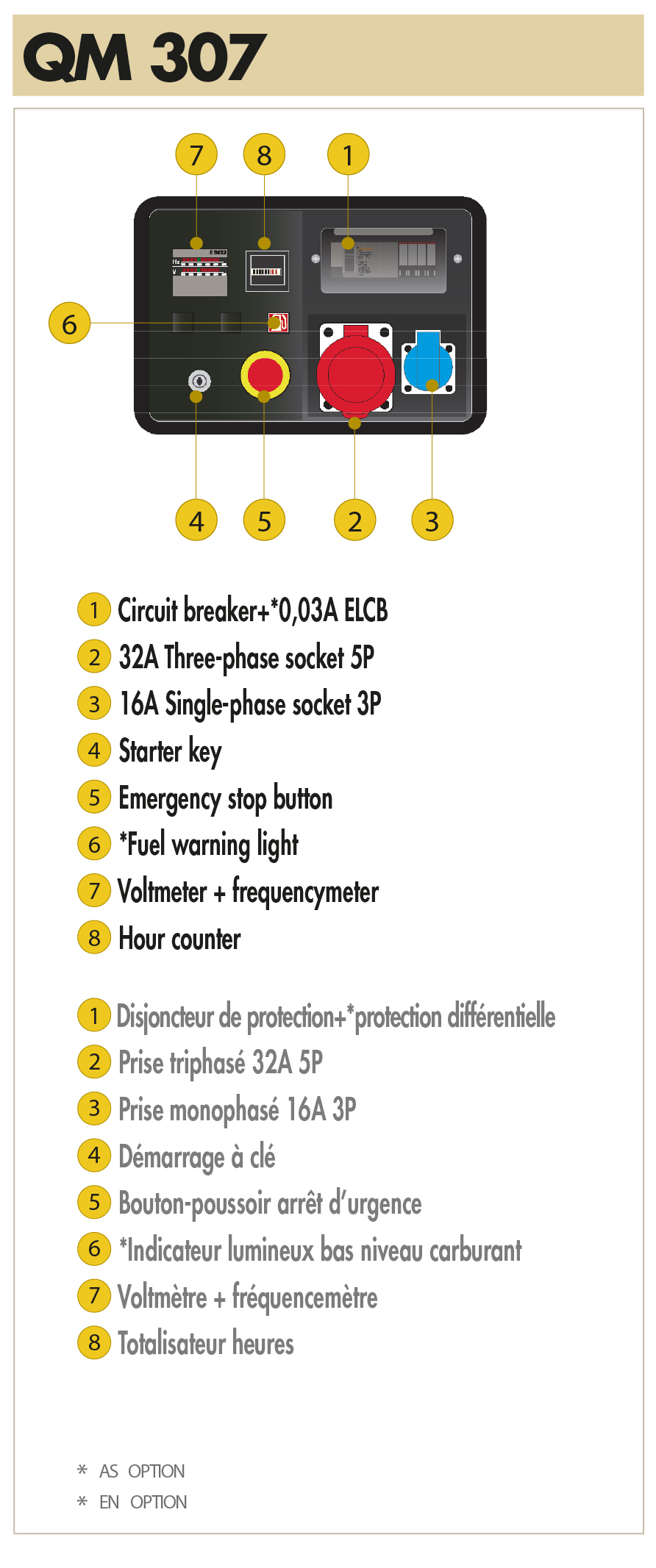

> CONTROL PANEL
