3000 rpm 50 Hz – cos ϕ 0,8 230V – 400/230V 3600 rpm 60 Hz – cos ϕ 0,8 voltage on request

BOXER D SERIES

STANDARD EQUIPMENT

• Protection frame
• Lifting eye
• Exhaust gas silencer
• Air filter
• Fuel tank 20 lt
• Distribution panel with output sockets with circuit breaker, 0,03 A ELCB optional
• 12V Battery on electric started models

BOXER D SERIES

3000-3600 MODEL	50 Hz kVA max		60 Hz kVA max	60 Hz kVA cont	Starting	Brand	Engine	Cylinder	cm3	Hp (max) 3600	Cons. 75%(h/l)	Standard panel		tank	L	W	H	Kg
MODEL	kVA max	kVA cont	kVA max	kVA cont	Starting	Brand		Cylinder	cm3	Hp (max) 3600	Cons. 75%(h/l)	Standard panel	Automatic panel
	50 Hz			60 Hz			Engine Technical Data												Tank l	L	W	H	Kg
SINGLE-PHASE
BXD45	4.4	4	4.8	4.4	M	Yanmar	L70AE	1	296	6.7	0.9	QM106	- -	20	78	52	56	72
BXD4500E	4.4	4	4.8	4.4	E	Yanmar	L70AE	1	296	6.7	0.9	QM106	ACP 0411	20	78	52	56	79
BXD5000	4.6	4.2	5.1	4.6	M	Kohler	15LD350	1	349	7.5	1.2	QM106	- -	20	78	52	56	75
BXD5000TE	4.6	4.2	5.1	4.6	E	Kohler	15LD350	1	349	7.5	1.2	QM106	ACP 0411	20	78	52	56	82
BXD7000T	6.3	5.5	7.2	6.5	M	Yanmar	L100AE-D	1	406	10	1.4	QM106	- -	20	99	56	69	116
BXD7000TE	6.3	5.5	7.2	6.5	E	Yanmar	L100AE-D	1	406	10	1.4	QM106	ACP 0411	20	99	56	69	123
BXD7500T	7	6.4	7.5	6.8	M	Kohler	15LD440	1	442	11	1.6	QM106	- -	20	75	56	62	109
BXD7500TE	7	6.4	7.5	6.8	E	Kohler	15LD440	1	442	11	1.6	QM106	ACP 0411	20	75	56	62	116
BXD9000TE	9	8	11.5	10	E	Kohler	25LD330	2	654	15.2	2.2	QM106	ACP 0411	20	99	56	69	150
BXD11000TE	11	10	13	11.5	E	Kohler	25LD425	2	851	17.7	2.3	QM106	ACP 0411	20	99	56	69	160
BXD13000TE	13	12	16	15	E	Kohler	12LD477	2	954	19	3.3	QM106	ACP 0411	20	99	56	69	215
THREE-PHASE
BXD4500T	4.4	4	4.8	4.4	M	Yanmar	L70AE	1	296	6.7	0.9	QM306	- -	20	78	52	56	72
BXD4500TE	4.4	4	4.8	4.4	E	Yanmar	L70AE	1	296	6.7	0.9	QM306	ACP 0411	20	78	52	56	79
BXD5000T	4.6	4.2	5.1	4.6	M	Kohler	15LD350	1	349	7.5	1.2	QM306	- -	20	78	52	56	75
BXD5000TE	4.6	4.2	5.1	4.6	E	Kohler	15LD350	1	349	7.5	1.2	QM306	ACP 0411	20	78	52	56	82
BXD7000T	6.3	5.7	7.2	6.5	M	Yanmar	L100AE-D	1	406	10	1.4	QM306	- -	20	99	56	69	121
BXD7000TE	6.3	5.7	7.2	6.5	E	Yanmar	L100AE-D	1	406	10	1.4	QM306	ACP 0411	20	99	56	69	128
BXD7500T	7.3	6.6	7.5	6.8	M	Kohler	15LD440	1	442	11	1.6	QM306	- -	20	75	56	62	114
BXD7500TE	7.3	6.6	7.5	6.8	E	Kohler	15LD440	1	442	11	1.6	QM306	ACP 0411	20	75	56	62	121
BXD9000TE	9	8	11.5	10	E	Kohler	25LD330	2	654	15.2	2.2	QM306	ACP 0411	20	99	56	69	155
BXD11000TE	11	10	13	11.5	E	Kohler	25LD425	2	851	17.7	2.3	QM306	ACP 0411	20	99	56	69	160
BXD13000TE	13.3	12	16	15	E	Kohler	12LD477	2	954	19	3.3	QM306	ACP 0411	20	99	56	69	215

BOXER D SERIES

STANDARD EQUIPMENT

BOXER D SERIES

Legend: Noise level not compliant with European regulation 2000/14/CE

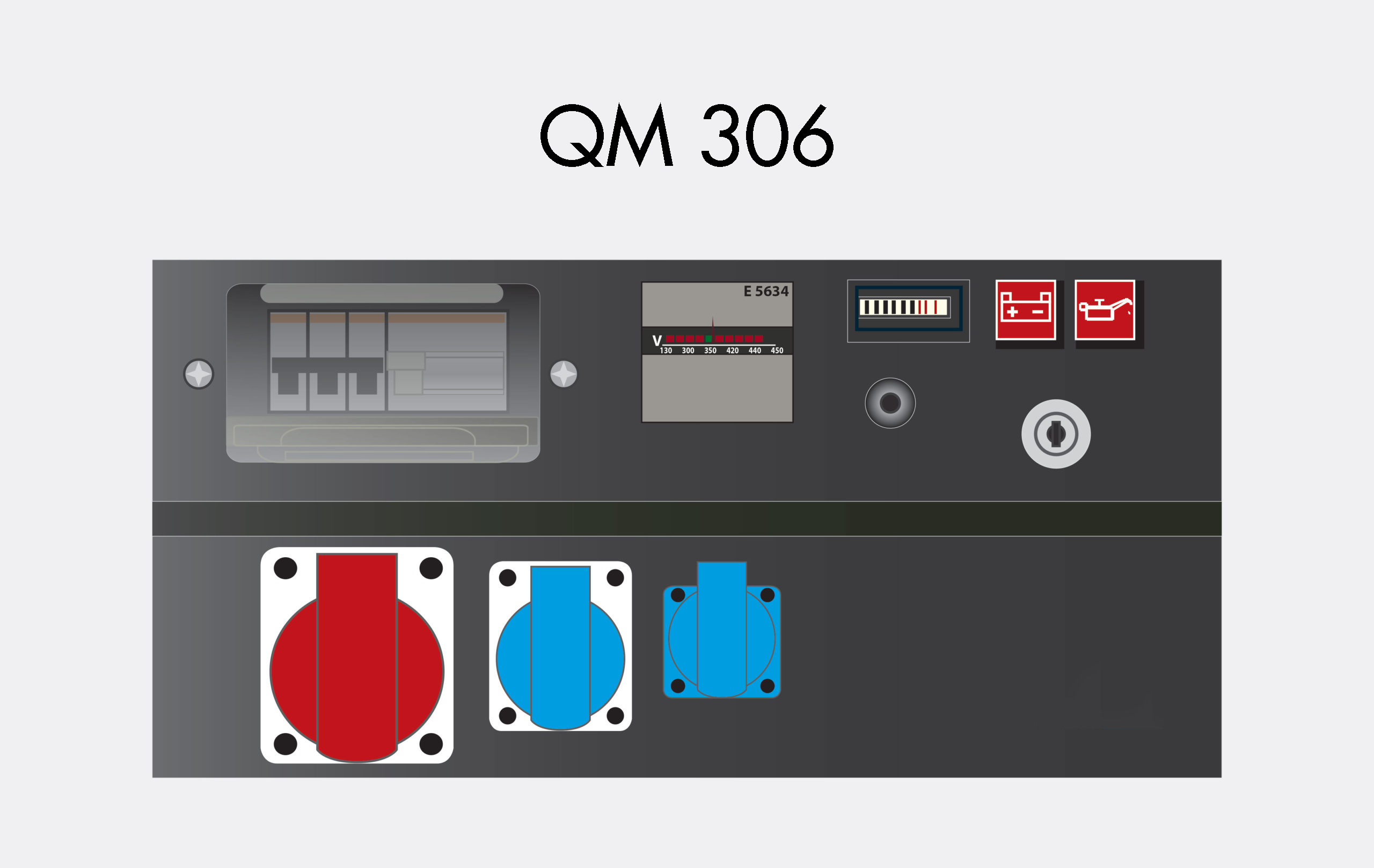

> CONTROL PANEL
